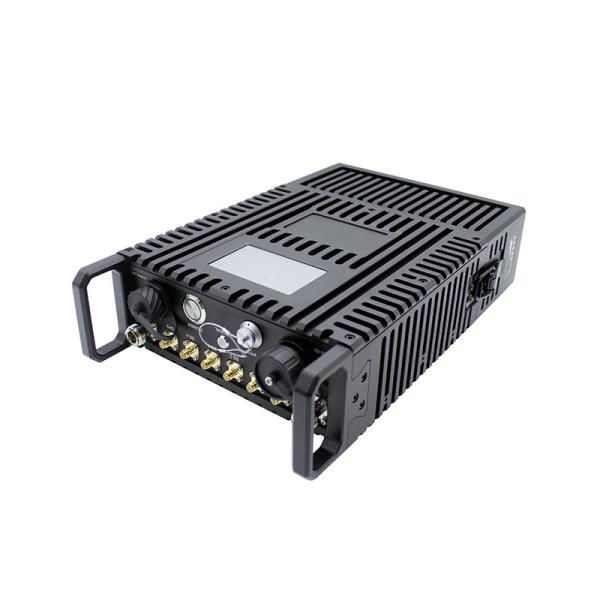

FHSS Manpack MANET Radio Base Station 43dBm AES256 Battery Powered

Introduction

The MANE9201 is a rugged MANET (Mobile Ad Hoc Network) transceiver supports 4G-LTE connection, offering a full 20 watts power output. Based on FPGA solution, it supports FHSS (Frequency Hopping) and IFS (Intelligent Frequency Selection). It is ideal for a variety of mesh deployments such as Public Security, Armed Police, Fire Control, and Robot. Its multi-hop ability can largely increase the transmission distance, each hop can cover 2-3km NLOS. The up to 56Mbps data rate allows it to transmit video, data and audio at the same time easily. The AES encryption ensures the security of data transmission.

Features

■ Supports Mobile Ad Hoc Network (MANET)

■ Frequency 1300-1500MHz (70MHz-6GHz customizable)

■ Supports FHSS and IFS (Intelligent Frequency Selection)

■ AES128/AES256 encryption as optional

■ 2x10W power output

■ Supports WIFI and 5G/4G (Optional)

■ 28/56/112Mbps data rate as optional

■ 2/4/8/32/64/128/256 nodes as optional

■ Supports PTT voice intercom

■ Supports GPS/BD/GLONASS (GNSS)

■ Full transparent IP data transmission

■ Supports Web management

■ The API is available for further development

■ With LCD to show the device parameters in real time

■ HDMI input as optional

■ Rugged IP66 housing

Specification

Panel Description

① Power push button

② PTT (Mic)

③ MESH signal indicator

④ LAN interface, RJ45

⑤ Digital LCD indicator

⑥ Configuration buttons (optional) - set frequency, bandwidth and distance parameters.

⑦ Battery Indicator

⑧ Battery butterfly clasp

⑨ MESH antenna interface-2

⑩ WIFI antenna interface-2

⑪ 4G antenna interface

⑫GPS/BD antenna interface

⑬ WIFI antenna interface-1

⑭ MESH antenna interface-1

① Battery charging port

② Main body power input port

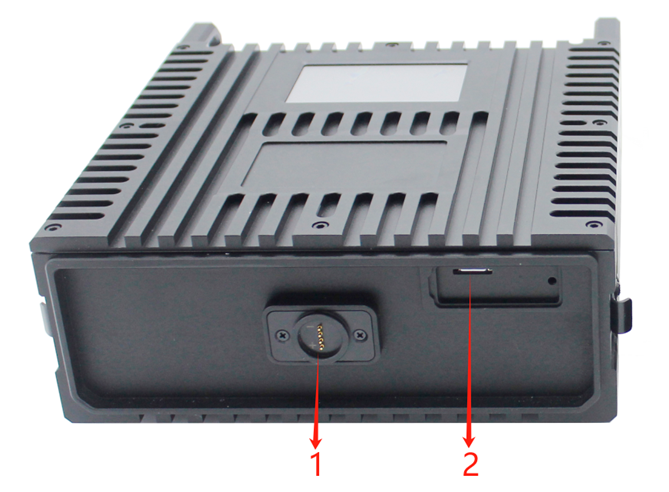

① Battery +/- contacts

② SIM card slot
