LinkAV - Wireless Communication Specialist Focusing on Wireless Communication for over 19 Years!
11 Years
| Ask Lasest Price | |
| Brand Name : | LINKAV |
| Model Number : | MANET9401 |
| Certification : | CE |
| Price : | 2000usd |
| Delivery Time : | 15days |
| Payment Terms : | TT |
| Supply Ability : | 1000pcs/year |
The UAV Data Link is compact and easy to use, with a size of 120*90*40mm. This makes it a highly portable and versatile device that can be used in a wide range of applications. The device supports a range of bandwidth options, including 2/5/10/20MHz, making it suitable for a wide range of data transmission needs.
With 32 network nodes, the UAV Data Link offers a highly scalable and flexible data transmission solution. This allows users to easily expand their network as needed, without having to worry about compatibility issues.
One of the key features of the UAV Data Link is its advanced encryption capabilities. The device uses AES 256-bit encryption to ensure that all data transmitted over the network is secure and protected from unauthorized access.
Overall, the UAV Data Link is an essential tool for anyone involved in unmanned aerial vehicle operations. Whether you're a drone pilot, a data analyst, or a researcher, this device provides reliable and secure data transmission capabilities that are essential for success.

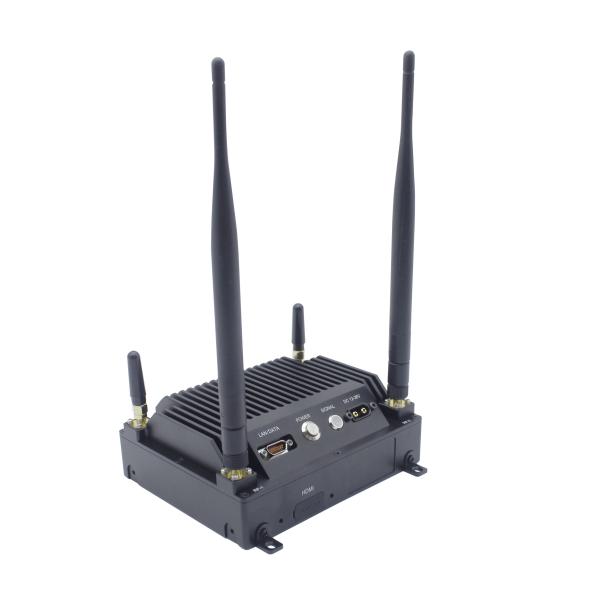

The UAV Data Link is a drone airborne video module and UAV Communication System that provides an Unmanned Aerial Vehicle video Data Link. It has a compact size of 120*90*40mm and can transmit data up to 70-120KM(LOS) and 30-Long Distance(Ground-to-ground LOS). It uses LAN/TTL/RS232/HDMI data links. The product comes in a standard export packaging and has a link delay of 10ms.
| Product Attribute | Value |
|---|---|
| Product Name | UAV Signal Link |
| Product Type | UAV Transmission Module |
| Package | Standard Export Packaging |
| Link Delay | 10ms |
| Output Power | 4W |
| Transmit Range | 70-120KM(LOS) 30-Long Distance(Ground-to-ground LOS) |
| Weight | 475g |
| Data Links | LAN/TTL/RS232/HDMI |
| Bandwidth | 2/5/10/20MHz |
| RF Channel | 2T2R |
| IP Rating | IP54 |
| Network Nodes | 32 Nodes |
| Additional Features | Drone video module |
With its advanced features and specifications, the LINKAV MANET9401 is perfect for aircraft data transmission systems. It can transmit data using LAN/TTL/RS232/HDMI data links and has a range of 70-120KM (LOS) 30-Long Distance (Ground-to-ground LOS). The product has a compact size of 120*90*40mm, making it easy to install on UAVs.
The LINKAV MANET9401 is produced in Shenzhen and is certified with CE. The minimum order quantity for this product is 1, and it is priced at 2000usd. It comes packaged in a carton and has a delivery time of 15 days. The payment terms for this product are TT, and the supply ability is 1000pcs/year.
This product is suitable for various application occasions and scenarios. For example, it can be used in and defense operations to provide secure and reliable communication between unmanned aircraft and ground control stations. It can also be used in search and rescue operations to provide real-time video and data transmission from the unmanned aircraft to the rescue team.
The LINKAV MANET9401 can also be used in agricultural and environmental monitoring, where it can provide real-time data transmission from unmanned aircraft to the ground station. It can also be used in mapping and surveying operations, where it can provide high-quality data transmission from the UAV to the survey team.
Overall, the LINKAV MANET9401 is a versatile and reliable product that can be used in various scenarios to create a secure and efficient UAV communication system. With its advanced features and specifications, it is an excellent choice for anyone looking for a high-quality aircraft data transmission system.
|
|
