The MANET9402 is a rugged MANET (Mobile Ad Hoc Network) transceiver special designed for UAV video data transmission. Based on FPGA solution, it supports FHSS (Frequency Hopping) and IFS (Intelligent Frequency Selection). Offering a full 10 watts power output. It is ideal for a variety of mesh deployments such as Public Security, Armed Police, Fire Control and . Its multi-hop ability can largely increase the transmission distance, each hop can cover 50-120km air-to-air (LOS). The up to 56Mbps data rate allows it to transmit video, data and audio at the same time easily. The AES256 encryption ensures the security of data transmission.

1.Supports Mobile Ad Hoc Network (MANET)

2.Frequency 1300-1500MHz (70MHz-6GHz customizable)
3.Supports FHSS and IFS (Intelligent Frequency Selection)
4.Supports AES256 Encryption
5.2x5W power output
6.Data rate up to 56Mbps
7.Supports up to 32 nodes
8.Supports GPS/BD/GLONASS (GNSS)
9.Full transparent IP data transmission
10.Supports WebUI management
11.With HDMI input

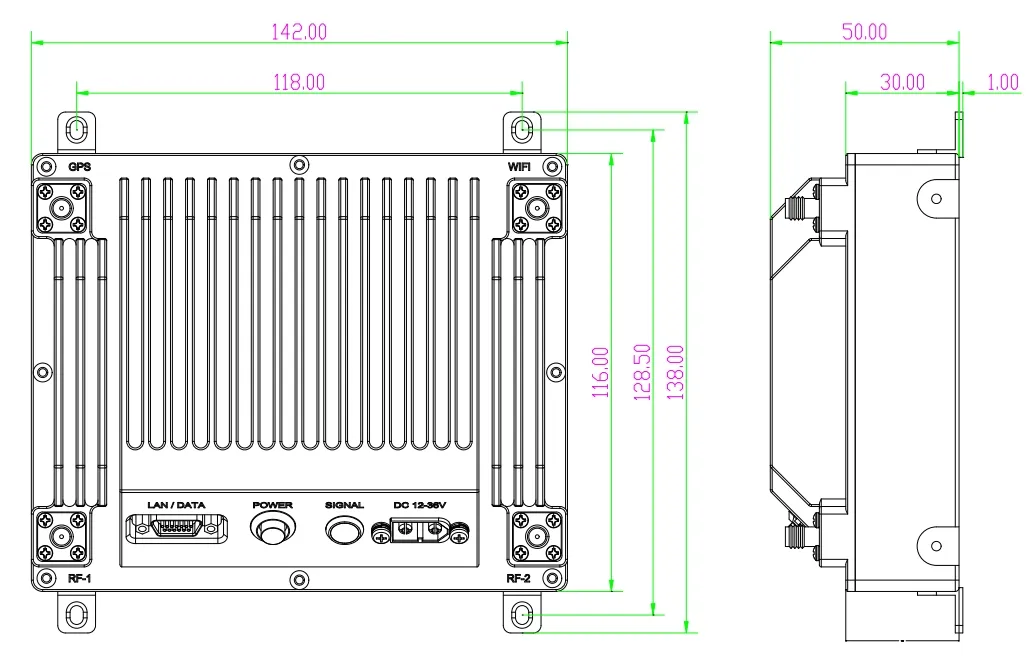

1. GPS antenna interface,SMA F
2. WIFI/LoRa antenna interface, SMA F
3. MESH antenna interface-2, SMA F
4. Mounting bracket x4
5. Nameplate
6. Power input interface (XT60)
7. Signal indicator
8. Power button
9. HDMI input interface, Mini HDMI
10. LAN/TTL interface (J30J-15TJ connector, PIN 1, 2, 3 and 4 for LAN, PIN 5, 6 and 7 for TTL GND, TX and RX)
11. MESH antenna interface-1, SMA F

It is widely used in important departments such as security, civil air defense, civil defense, fire protection, emergency rescue departments and forest fire prevention, transportation, customs, railways, oil fields, mines, water conservancy, electric power, finance, live broadcast of TV stations, etc.
